Main Dimensions & Performance Data
| d | 32 mm | Bolt diameter |
| D | 81,6 mm | Outer diameter housing |
| D1 | 117 mm | Diameter flange |
| B | 102 mm | Total height unit |
| Cr | 50.000 N | Basic dynamic load rating, radial |
| C0r | 40.000 N | Basic static load rating, radial |
| ≈m | 2,59 kg | Weight |
Mounting dimensions
| J | 98 mm | Pitch circle diameter (holes) |
| d1 | 28 mm | Diameter adapter |
| d2 | M12x1,25 | Fixing bore metric |
| d3 | 25,5 mm | Length locking device |
| G | M22x1,5 | Connection thread |
| lG | 28,5 mm | Length thread |
| a3 | 12 mm | Width of adapter |
| n | 6 | Number of screwing holes |
Dimensions
| D2 | 70 mm | Outer diameter bearing |
| B1 | 12 mm | Thickness of flange |
| B2 | 61,5 mm | Height housing |
Downloads:
We are sorry...
There is currently no CAD file available for this product. If you’d like to be notified when CAD is available, sign in or register for free.
All
English
2021-09-13 | Broschüre | | Englisch

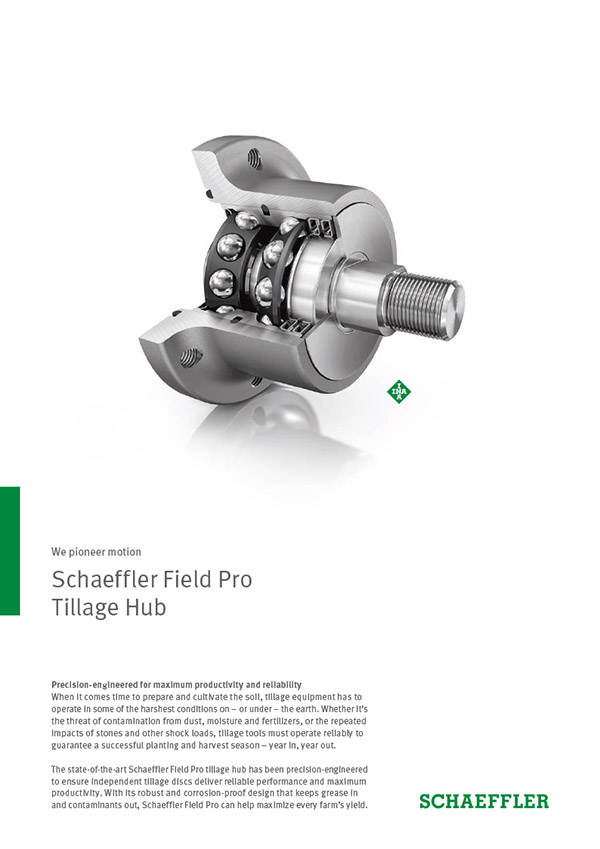

Schaeffler Field Pro
